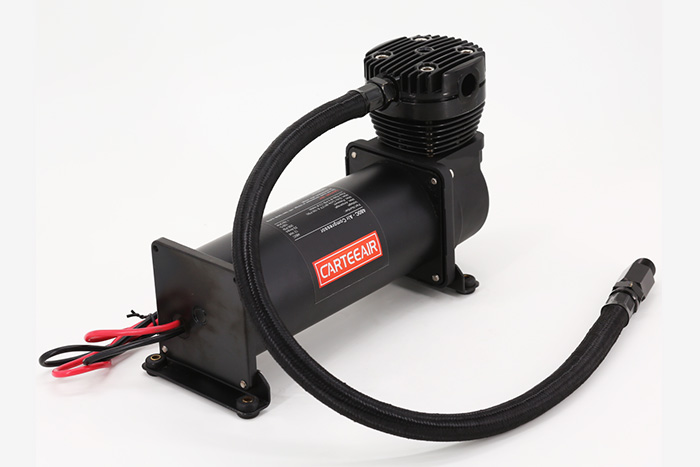

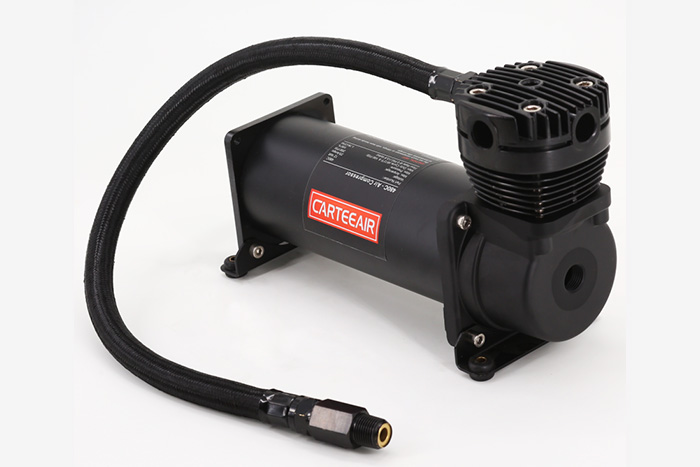

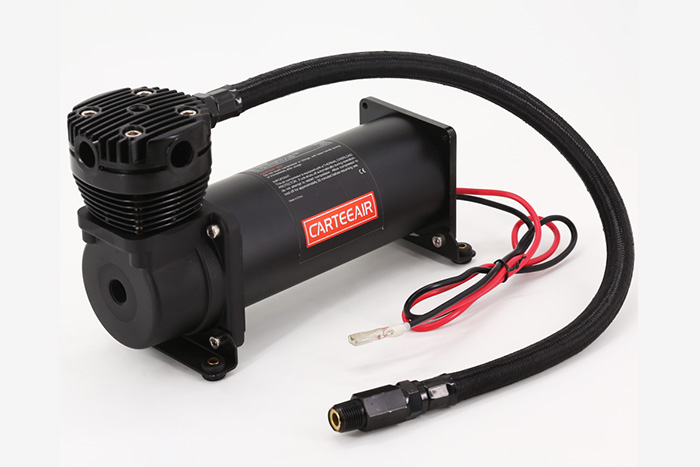

480C Black

480C air compressor is a truly rated, 200 PSI-rated compressor.

It features our patented head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.

Features:

With automatic reset thermal overload protector.

Double filter, remote installation.

Heavy-duty, direct-drive powerful motor.

Oil-free design, save your money and energy.

Durable air pump and motor with low noise, provide quiet work and long life.

The motor is equipped with a self-restoring temperature protector

Heavy-duty, direct-drive powerful motor.

Oil-free, shock pad, double filter, remote installation.

High Strength Stainless Steel Gas Valve.

High Performance Wear Resistant Piston Ring.

Anodized aluminum cylinder.

Durable air pump and motor with low noise, provide quiet work and long life.

moisture and dust resistant.

Heat-resisting covered steel rubber tube with one-way valve and rotary joint.

歡迎咨詢

服務(wù)熱線

13886501872
13809667059

產(chǎn)品說明

SPECIFICATIONS:

Motor Voltage:12 Volts

Max. Current Consumption: 23 Amps

Motor Type:Permanent

Magnetic

Horsepower:1/4

Max. Working Pressure:200 PSI

Max. Duty Cycle (@ 72oF & 100 PSI):100%

Minutes On/Off (@ 72oF & 100 PSI):Continuous

Max. Restart Pressure:200 PSI

Max. Ambient Temperature:158F

Min. Ambient Temperature:-40F

Auto. Reset Thermal Protection:Yes

flow rate: 1.76 cfm @ 0 psi

intermittent pressure: 300 psi

ingress protection rating: ip67

cylinder: Φ40mm

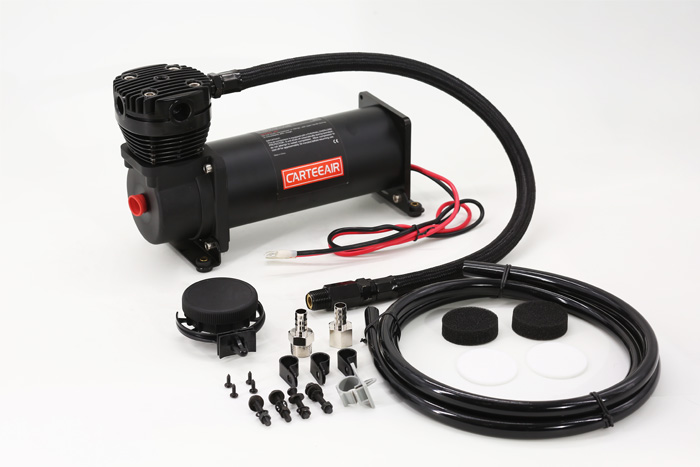

Accessories:

mounting hardware (nuts, bolts, locking washers)

vibration isolators

remote mount air filter assembly

two replacement air filter elements

air line for remote mount air filter installation

stainless steel braided leader hose

check valve

PERFORMANCE DATA:

PSI	CFM	A	BAR	LPM	A
0	1.76	10	0	50	10
10	1.66	12	1	46	13
20	1.59	14	2	43	14
30	1.52	15	3	40.5	17
40	1.45	16	4	38.5	18
50	1.41	17	5	35.5	19
60	1.34	18	6	33	19
70	1.27	18	7	31.5	19
80	1.2	19	8	29.5	20
90	1.16	19	9	27	20
100	1.13	19	10	25	19
110	1.06	20	11	23	19
120	1.02	20	12	20.5	19
130	0.95	20	13	18	18
140	0.92	19	14	15.5	18
150	0.85	19
160	0.81	19
170	0.74	19
180	0.7	19
190	0.63	18
200	0.56	18

*Voltage: 13.8 V

High pressure pump suit for automobile air suspension, air horn, sweeper, air vending machine, pneumatic control door, pneumatic seat, pneumatic brake assist system, air lock, agricultural machinery, medical equipment, industrial equipment, cleaning equipment, etc.
