惠州市卡迪機電有限公司
Huizhou Cartee Electric & Machinery Co., Ltd.
Hotline

13886501872  13809667059

Hotline

13886501872
13809667059

Products

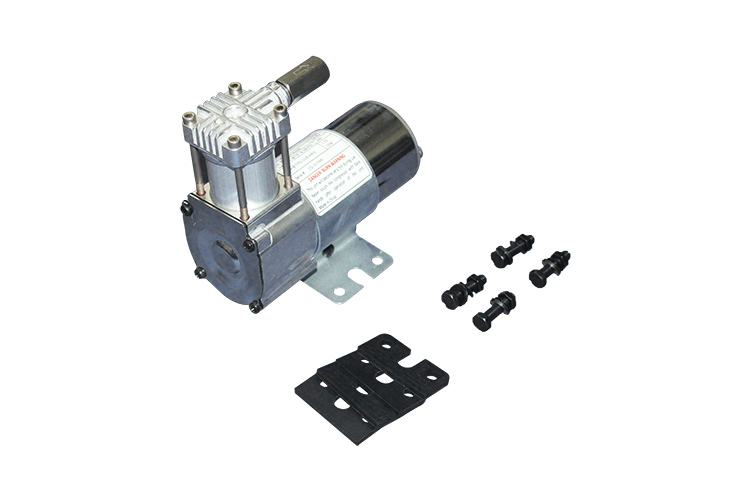

X095
  • X095
X095

P/N X095-12V                           120 PSI / 1.03 CFM – (12V)

P/N X095-24V                           120 PSI / 1.03 CFM – (24V)


Included parts

1) Omega bracket

2) Check valve (one-way valve)

3) Vibration isolator

4) Mounting screw set

Service Hotline

13886501872
13809667059

A detailed description
80 0.45 10 8.0 10.0 9
90 0.43 10
100 0.39 9
110 0.36 9
120 0.34 9

* Supply Voltage: 13.8 Volts
24-VOLT COMPRESSOR
PSI CFM A BAR LPM A
0 1.03 4 0 29.0 4
10 0.71 4 1.0 19.0 4
20 0.67 4 2.0 18.0 4
30 0.64 4 3.0 16.5 5
40 0.60 5 4.0 15.0 5
50 0.57 5 5.0 13.5 5
60 0.53 5 6.0 12.5 5
70 0.48 5 7.0 11.0 5
80 0.45 5 8.0 10.0 5
90 0.43 5
100 0.39 5
110 0.36 5
120 0.34 5

* Supply Voltage: 28.0 Volts
FILL RATES
12-VOLT COMPRESSOR
0.5 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 08 sec. (± 05 sec.)
85 to 105 PSI 16 sec. (± 03 sec.)
0 to 120 PSI 1 min. 23 sec. (± 05 sec.)
90 to 120 PSI 27 sec. (± 03 sec.)
1.0 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 20 sec. (± 10 sec.)
85 to 105 PSI 35 sec. (± 05 sec.)
0 to 120 PSI 3 min. 04 sec. (± 10 sec.)
90 to 120 PSI 54 sec. (± 05 sec.)



24-VOLT COMPRESSOR
0.5 GALLON TANK FILL RATE
0 to 105 PSI 1 min. 05 sec. (± 05 sec.)
85 to 105 PSI 15 sec. (± 03 sec.)
0 to 120 PSI 1 min. 20 sec. (± 05 sec.)
90 to 120 PSI 25 sec. (± 03 sec.)
1.0 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 10 sec. (± 10 sec.)
85 to 105 PSI 31 sec. (± 05 sec.)
0 to 120 PSI 2 min. 40 sec. (± 10 sec.)
90 to 120 PSI 50 sec. (± 05 sec.)
